Agritechnica 2019 Gold and Silver Awards

834651


Innovation Award AGRITECHNICA 2019

An independent expert commission appointed by the DLG (German Agricultural Society) determined the winners of the Innovation Award AGRITECHNICA from among 291 approved applications for product innovations, based on stringent criteria. One innovation was awarded a gold medal and 39 innovations received a silver medal.

The winner of the only Innovation Award in gold is:

834653


John Deere Walldorf GmbH & Co. KG (Hall 13 stand C40)

eAutoPower gearbox e8WD for 8R large tractors. Joint development with JOSKIN, Hall 4 C12

Stepless transmissions with a hydrostatic-mechanical power split have been used in agricultural tractors for over 20 years. Up until now, additional generators for electric drives with a higher power requirement were installed on tractors (fan, compressed-air/air conditioner compressor, etc.) or on implements.

The eAutoPower gearbox for the new 8R large tractors from John Deere represents the first electro-mechanical power split gearbox in agricultural technology. Technically, the hydro unit (pump/motor) is completely dispensed with; instead, two electric motors are used as a continuously variable actuator. The electric motors have been specified so that they not only supply the drive, but can also provide up to 100 kW of electric power for external consumption. The resulting possible tractor-implement electrification is demonstrated with a system solution for spreading manure developed together with Joskin, where two axles on a tridem spreader are electrically driven.

On the tractor side, this electrical integration results in improved gearbox efficiencies and reduced maintenance costs. In addition, the surplus power flows occurring at certain operating points can be "tapped" when utilising electric power for external electrical components, which further improves the overall efficiency. Used in combination with an axle drive on a manure spreader, the results in practical use include, among other things, higher traction, reduced slip and improved track guidance on side slopes.

The winners of the Innovation Award in silver are:

834655


1. AGCO Deutschland GmbH, business unit Fendt (Hall 20, stand B14b)

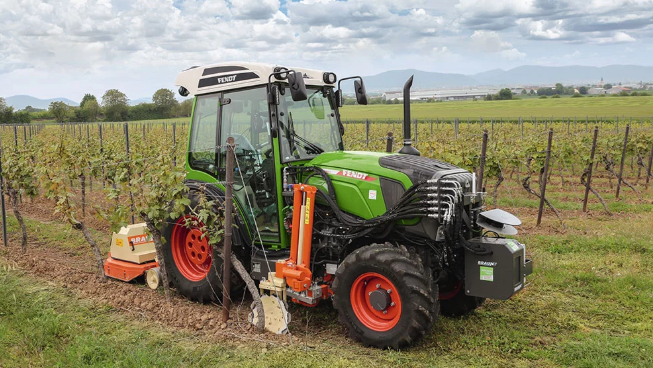

Automated Vehicle and Implement Guidance in Wine-Growing. Joint development with Braun Maschinenbau, Hall 20, B14f

Operating farm machinery under vines requires a high level of concentration from the tractor driver. The tractor must be steered precisely, while at the same time monitoring and controlling the implements.

The automated vehicle and implement guidance system jointly developed by Fendt and Braun considerably increases output in wine-growing tasks – while simultaneously reducing the strain on the driver. The ground contour, vines, poles, etc. are recorded using laser technology and the information is passed on to the Fendt 200V Vario narrow-track tractor via an ISOBUS interface. Furthermore, the 3D position is determined with a gyroscope and the tractor assumes the track and implement guidance based on this information. The height and width of implements mounted on the left and right between the axles can be controlled independently of each other, however the system can also be used for the lateral guidance of rear mulchers.

The combined tractor/implement control system therefore simplifies the operation of farm machinery under vines. In addition to reducing the strain on the driver and increasing output, more exact guidance of these tools also enables the reduced use of other crop protection measures.

834662


2. AGCO International GmbH, Switzerland, (Hall 20 stand B14)

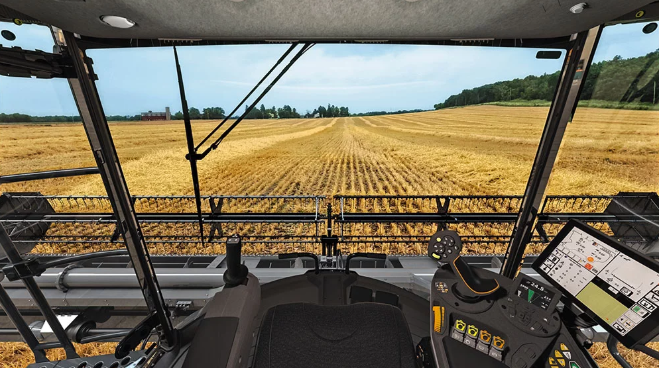

Fendt IDEALDrive

While harvesting threshing crops, the steering wheel and the steering column impair the view of the harvested crop being pulled-in directly in front of the inclined conveyor. This is particularly true under difficult harvest conditions. Problems with crop flow recognised too late result in the consequence of possible clogging and downtime, and of overall threshing output.

With the Fendt IDEALDrive, AGCO provides an unobstructed view of the area directly in front of the combine harvester by dispensing with the steering column and steering wheel. The driver's seat is equipped with a left-hand armrest with a joystick. All the functions of the steering column – from the steering wheel to the turn signals – are integrated in it. The intensity of the steering commands are conversely proportional to the driving speed, increasing safety when driving on public roads at up to 40 km/h. The system meets the EU requirements for road approval.

The IDEALDrive is the first self-propelled agricultural machine completely operated with a joystick. In addition to the improved view, the manoeuvrability and operating comfort during harvesting work, and the overview when driving on public roads, and with it the safety, are increased. All in all, as in the construction machine sector, the system makes a contribution to increasing the efficiency of combine harvesting.

834663


3. Alliance Tire Europe BV, Netherlands, (Hall 04 stand C28)

398 MPT - High Speed Flotation Truck Tire

Agricultural trucks, with drive and chassis technology designed for off-road use, are becoming increasingly important in European agriculture and forestry. Up until now, no suitable tyres were available for the rear axles of a large number of these vehicles where the inflation pressure could be reduced to a reasonable level in the field, while also allowing driving speeds of more than 65 km/h on the road at a higher inflation pressure.

The Alliance 398 MPT now enables fast driving on motorways and expressways and, due to the tread design and reduced tyre inflation pressure, offers excellent traction and reduced loading of the ground in fields and off-road. The design, with steel belts and a steel body, enables low heat-up at high driving speeds, driving safety and flexible adjustment to terrain with a reduced tyre inflation pressure.

With tyres like the Alliance 398 MPT, the border between arable land and asphalt is more "permeable", i.e. the lorry technology, which is considerably more energy-efficient on the road compared to tractors, can in some cases also be used for agricultural transport on fields under the more difficult ground conditions there.

834664


4. AMAZONEN-WERKE H. Dreyer GmbH & Co. KG (Hall 09 stand H19)

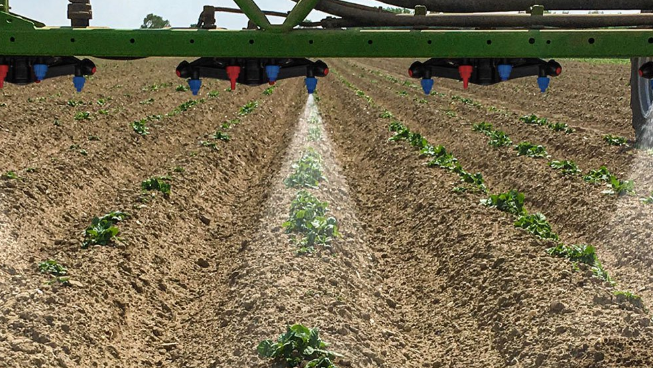

AmaSelect Row

When hoeing row crops, the areas between the rows are processed, however the longitudinal spaces between the plants are not.

Currently, this gap in weed control cannot be closed with purely mechanical methods, however this is possible with a combination of special boom sprayers. Here the operating conditions of both systems must be seen as rather contrary. The hoe operates optimally under dry conditions and the crop protection agents are more effective with corresponding soil moisture.

The AmaSelect Row System enables the user to switch over from area application to boom application, without conversion measures and at any time, with a "standard" field sprayer in field operation in various row crops (sugar beets, maize, potatoes, etc.). For this purpose, the AmaSelect 4-fold nozzle body offers a 50 cm partial width switching and nozzle positions at a 25 cm and 50 cm distance with flexible switching of each individual nozzle. This unique nozzle body design enables row referencing with both 75 cm and 50 cm row widths without conversion measures. A nozzle configuration for the individual farm is equipped and programmed depending on the row width of the crops. The system can be switched over from boom application to the usual area application as desired at the press of a button. The desired application quantity for areas and boom application is stored in the control terminal. As a result, the application quantity is automatically adjusted during a function change, preventing overdosing in the boom.

The basic condition for boom application with this method is, of course, the exact position of the cultivated crop being captured during sowing by means of RTK, as well as exact track guidance. In addition, optimum boom positioning is assumed, as a combination of spraying angle and distance from the ground determines the width of the spray band. Using the special nozzles with a 40 degree spraying angle, a spray width of 25 cm results when it is 35 cm from the ground. This, of course, can be varied depending on the boom height.

Traditionally, boom spraying is often combined with mechanical weed control. With AmaSelect Row a decoupling of the two methods is achieved; each system can be optimally run accordingly, enabling the performance of both systems to be optimally utilised. As a result, the amount of crop protection agents used in row crops is considerably reduced without a loss of performance. That lowers costs while protecting the environment.

834799


5. AMAZONEN-WERKE H. Dreyer GmbH & Co. KG (Hall 09 stand H19)

EasyMix

Significant amounts of mixed fertilisers are prepared at decentralised locations with the objective of using inexpensive individual fertilisers while at the same time applying several nutrients in the desired ratio. Apart from some mixed fertilisers produced as standard with a defined nutrient ratio and defined initial components, up until now there have been no aids, e.g. spreading charts, for the majority of these customised fertiliser mixtures that would enable fertilisers spreaders to be optimally adjusted in accordance with the properties of the mixture produced.

With the "EasyMix" app from Amazone, used with the company’s two-disc spreaders, it is now possible to estimate the lateral distribution of the individual components and to determine the optimum fertiliser spreader adjustment for the mixture before it is produced. This is achieved by entering the planned mixing components, the fertiliser spread properties and the desired working width. Alternating effects of the individual components on the spreading disc and their varying flight behaviour are taken into account when determining the expected spreading quality.

As a result, the app reduces the danger of uneven nutrient distribution resulting from unsuitable mixture components, an excessively large working width or an incorrect fertiliser spreader adjustment.


834800


6. BISO GmbH, Austria (Hall 05 stand E28)

3D Varioflex

Additional crop rotations with a higher share of legumes require cutting systems with flexible cutterbars to harvest the crops located close to the surface of the ground with the lowest possible pick-up losses. However, these cutting systems have to be suitable for both grain and rape, as is customary for the ordinary auger cutting systems with a variable cutting table length.

With the 3 D Varioflex cutting system, BISO has combined the advantages of a flexible cutter bar with a variable cutting table length for the first time. The cutterbar is height-adjustable over a total of 25 cm and the contact force of the cutterbar on the ground is measured with force sensors in its parallelogram carriers. The contact pressure range can be adjusted from 0 to 50 kg, so that the carriers connected at the rear with the frame actively guide the cutterbar over bumps in the ground. The vertical movements of the variable cutting table benefit from scale-like overlapping guide plates.

BISO presents provides farmers with an auger cutting system with active adjustment of the cutterbar to the ground for the first time. It can be used instead of a conventional cutting system with a variable cutting table length and a flexible cutting system, therefore reducing costs.

834801


7. CLAAS - Vertriebsgesellschaft mbH Deutschland (Hall 13 stand C02)

CEMOS AUTO Performance

This system is a combined engine output/forward speed control on forage harvesters.

Capacities and engine powers of forage harvesters have increased during the past few years. Yet, the full engine power that is currently available on a high-performance harvester is only exploited to the full when there is good supply and constant flow of maize or wholecrop silage into the machine. However, only 500-600hp is needed when harvesting wilted silage. Running the engine at full power when this is not required by the work at hand needlessly increases fuel consumption.

CEMOS AUTO Performance matches engine output to the work at hand by altering the power curve. In the field, the operator starts the assistance system and selects an engine speed, a forward speed and one out of 10 engine power curves. After the autopilot is started, the forager and the tractor trailer combination start working. The preset engine speed is accepted directly by the forager and is maintained by the automatic control system. When it turns out that the preset power output is too high for the present crop, the system automatically switches to a lower and more efficient output range while maintaining the current forward speed and engine speed. Vice versa, the system switches to a higher output range when harvesting higher-yielding stands.

The automatic engine output control eases the strain on both the forager and driver in a very convenient way, and leads to environment-friendly fuel savings of up to 15 percent

834802


8. CLAAS - Vertriebsgesellschaft mbH Deutschland (Hall 13 stand C02)

APS Synflow Walker

The threshing output of walker combine harvesters cannot be further increased by enlarging the threshing and separating units, as the volume of the machines, and the width in particular, are limited. Consequently, up until now the tangential threshing unit in walker combines was supplemented with a separator drum located downstream of the threshing unit or an upstream pre-accelerator drum. However, each additional drum increasingly destroys the straw and reduces the accessibility to the threshing and separating concaves.

With the APS Synflow Walker, Claas combines the two threshing and separating systems. The familiar accelerator follows a threshing drum increased in diameter to 75.5 cm. An additional separating drum with a 60 cm diameter separates residual grain from the straw, and is followed by the impeller. As a result, despite the reduced threshing concave wrap angle, threshing path length has been increased compared to the previous model. The harvested crop therefore flows straighter in an energy-saving manner that is gentle to the straw. All rotating speeds and concave gaps are synchronised, eliminating the need for additional adjustments, and the intensive threshing segment can be activated with a switch. The threshing and separating concave parts can be pulled out to the side on a tangential system for the first time, which greatly reduces the conversion effort between crops.

The APS Synflow Walker, therefore, increases the threshing output and is gentle on straw, while at the same time improving the quality of work achieved by the tangential threshing and separating system.


York

Member
Location
D-Berlin
when I read this:
An independent expert commission
I always have a bodily reaction. Have known some of the members of this comitee and looking at the prices given I only can ashure you to look at the list which "new" develelopment where handed in by the exhibitors.
from own personal experience I can say that there is no independance and that this comitee is lacking any professional conduct. They even don't look at the entries of last Agritechnica so a company can get a price for a solution this time where a other comitee did enter the same solution last Agritechnica which wasn't getting a price. This years company happen to be a major, ,last time it was a new comer.
Happened to myself.
I'm surprised that Amazone got medals and Horsch was left out altogether this year. At least for their row crop weeder they should have got a medal.
As well as Garford, which is now owned by a German company, should have got a better chance.....
York-Th.

835042


9. CLAAS - Vertriebsgesellschaft mbH Deutschland (Hall 13 stand C02)

CEMOS Auto Chopping

Changing the adjustment of the counter-blade and friction bar to match the various properties of straw is frequently neglected, as the combine harvester must be stopped for this purpose. Even when an opportunity for adjustment arises during harvesting work, the operator often lacks the required values for optimising of the control settings according to their agronomic goals.

With CEMOS Auto Chopping, Claas has, for the first time, automated the optimisation of the crop-dependent adjustments of a straw chopper. Sensors in the inclined conveyor measure the straw moisture level. The material layer thickness in the inclined conveyor also serves as an input signal for the automatic unit. As a result, the chopper settings are continually adjusted to the harvesting conditions; on areas with a higher straw moisture level, chopping is more aggressive. Using a slide switch, the operator only specifies the area between the maximum chopping quality and the maximum system efficiency in which the system is to operate. In addition, the system also offers a cleaning and safety function. When material flow is measured, the counter-blade and friction bar are moved back and forth for cleaning, and they swing out in case of a threat of short-term overloading.

With CEMOS Auto Chopping, as much power as necessary, but as little as possible, continually flows to the straw chopper. That saves fuel while at the same time offering advantages for both arable farming and crop growing.

835043


10. CNH Industrial Italia SpA, Italy, (Pavillon 11 stand C01)

ISOMAX

Joint development with:
OSB AG (Pavillon 11 stand C02)
Fliegl Agrartechnik GmbH (Hall 04 stand A40)
Competence Center ISOBUS e.V. (Hall 27 stand G33)

The major challenges in implementing new ISOBUS applications are high hardware costs, the cost for software development and the lack of knowledgeable graduate engineers. In particular, the industry lacks an innovative start-up scene of electronics-savvy professionals, pupils and students who are keen to develop marketable solutions that will turn ISOBUS into an integrating and central element on agricultural machines.

ISOMAX from AGXTEND (trademark) represents a new solution for future ISOBUS applications. The fully AEF (Agricultural Industry Electronics Foundation)-certified system is universal, comprehensive and comprises all elements including the connector and the ECU. ISOMAX can be operated via any ISOBUS terminal. As such, it allows owners of older implements to retrofit these with the technology and connect it to the tractor's ISOBUS system. The open-source ISOBUS Dev Kit allows electronics-minded farmers, pupils, students and also electronic professionals to develop ISOBUS-compatible solutions at very little cost. As ISOMAX provides automatic implement recognition and the ISOBUS "TC-GEO" function, it does not require operators to enter the data manually. In addition, it provides the basis for implementing precision farming. For example, the machine dimensions are automatically communicated to the tractor’s steering system. A built-in MEMS (micro electro-mechanical systems) sensor logs reliable field and road times, and actual working hours. It is also possible to connect to other systems, e.g. the "Fliegl Counter".

Being part of the ISOBUS evolution, ISOMAX presents a new combinations of ISOBUS platforms and sensor systems connected to it. ISOMAX is a low-cost and attractive option for small businesses to enter the ISOBUS world.

835044


11. ESM Ennepetaler Schneid- und Mähtechnik GmbH & Co. KG (Hall 27 stand H47)

ESM system biduxX©

Double knives have several in-built shortcomings that affect the efficiency of a mower: they are vulnerable to damage by foreign objects, high-maintenance and are the limiting factor for attaining high work rates. On the other hand, low in weight, requiring less input power and giving precision cuts, they do offer advantages in boggy terrain and mountainous regions.

The new bidux X double knife offers several intriguing and remarkable details. Thanks to a new geometry, the blades of the top and bottom knives are configured in such a way that wear and gap formation is reduced. In addition, the new geometry eliminates the need for regrinding all cutting edges of the blades on the top and bottom knives. The mushroom mounts of both knives and the new guides lead to substantial improvement in gap formation, which in turn results in a longer service life of the sharpened blades. One set of knives for a day’s work is the new and important formula in the use of double knives in sustainable farming.

The advantages of this significantly improved cutting system are uncontaminated forage and faster wilts, reduced fuel consumption and less damage to the sward, because the system can be operated with a smaller tractor. Further advantages include faster regrowth and protection of the entire fauna in the pasture. This is the cutting system of choice for farmers with a focus on sustainability, especially in view of the fact that the costs are comparable to those of disc mowers.

835045


12. Forigo Roter Italia S.r.l., Italy, (Hall 21 stand C05)

ModulaJet

The use of biodegradable plastic films has quite a long tradition in row cropping. Covering a seed row with plastic film is a practical way of controlling weeds. In addition, film reduces water evaporation rates and heats the topsoil, which in turn encourages early growth and reduces the vegetation period. Many films are punched by the punch hole seeder, or immediately after the seeding pass with mechanical elements so the new plants can shoot through the film without tearing it. Yet these holes also allow weeds to establish, which is not desirable as they are difficult to remove.

The ModulaJet system from Forigo Roter Italia SRL is an innovative seed placement technology for crops grown under film. The seeds are pneumatically singled, then accelerated in an air stream and shot through the film into the soil. This creates a very small hole right above the seed that are too small to allow weeds to develop. The depth of seed placement is controlled by the air flow rate. The seed rate and the application of the film at the end of the field are controlled electronically. The system works best for large seeds such as maize or soya.

Using much smaller holes in the film significantly reduces the degree of weed development after the new plants have broken through, reducing the subsequent row crop work.

835546


13. Gebr. Schumacher GmbH (Hall 13 stand B26b)

SmartCut

With the increasing working widths and harvesting speeds of combine harvesters, as well as changing cutting forces for crops that are to be threshed, the mechanical requirements for the cutting blade drive and cutting technology are also on the rise. Up until now, harvesting was carried out with the blade drive at a constant speed, and defects occurring during the harvest were detected from noises developing, a poor cutting pattern or even from clogging at the cutterbar.

With the SmartCut technology for blade drives, rotating-angle and rotating-force sensors have been integrated in the gearbox for the first time. The rotating-angle sensor indirectly measures the position of the mowing blade; the rotating-force sensor the drive force at the respective position. This enables SmartCut to differentiate between cutting, friction and peak forces. The latter occur when knife blades collide with foreign bodies or against fingers. Increased friction forces occur with bent fingers or knife blades, or other defects. The cutting force is dependent on the crop and the driving speed. For the first time, SmartCut therefore creates the basis for the load-dependent control of the blade drive. The measured cutting force can also serve as an input signal for the combine harvester's throughput controller.

The SmartCut technology enables wear prediction and the early detection of defects. This reduces downtimes and repairs – and with them the variable costs of combine harvesting.

835547


14. Carl Geringhoff Vertriebsgesellschaft mbH & Co. KG (Hall 13 stand A39)

Horizon Star III Razor Maize Picker

The European corn borer is spreading increasingly across all of Germany and is the most important pest affecting all maize harvesting methods. Its damaging effect is apparent in the harvest and quality losses through modest cob bases and infestation with fusaria fungi, which can also affect subsequent crops. In addition to insecticides and biological agents, one of the most important control strategies is thorough chopping up of the maize stubble directly following the harvest, i.e. before driving on fields with combine harvesters and removal logistics. Therefore, destruction of the maize stubble directly on the maize picker is required.

That's why the manufacturer Geringhoff has developed a maize picker with an integrated stubble chopper based on the familiar Rota Disk method, with one cutting and two picking rollers. It consists of angled blades on the rotor of the back-picker shredder below the picking units. For maximum destruction of all maize stubble, the rotors must be guided with the shortest distance to the surface of the ground. To achieve this, Geringhoff provides the frame of the Horizon Star III Razor maize picker with a rotary joint in the centre. The central area with the inclined conveyor of the combine harvester and the two side areas are depth-guided with sensors.

As a result, the Horizon Star III maize picker makes a major contribution to improving crop protection in maize production.

835548


15. GreenTec A/S, Denmark (Hall 26 stand F12)

Scorpion reach arm mowers

Parallel control and cutting irregular vegetation has not been convenient with reach arm mowers in the past. Switching between control modes has only been only possible by swapping reach arms or reprogramming the reach arm control. It has not been possible to switch control modes on the move.

Scorpion mowers now offer both types of cutting head control. On the one hand, it offers parallel control that allows operators to maintain a consistent cutting depth on the hedge with just very little adjustment by the operator. On the other hand, its hybrid arm system comes with a standard control unit that allows operators to control the cutting head flexibly when cutting irregular vegetation.

This innovative hybrid arm system makes it possible to switch between the two modes on the move. Parallel control allows operators to keep an eye on the surroundings for increased work safety, while switching to manual mode on the move allows them to carry out specific cuts for boosted productivity.

835549


16. Grimme Landmaschinenfabrik GmbH & Co. KG (Hall 25 stand G06)

SmartView

Digital camera technologies on farm machinery open up a wide range of opportunities in the monitoring of tuber processing procedures, documentation and, in the long term, in remote support/service applications. In this context, ROPA and Grimme have developed innovative solutions for beet and potato harvesters.

"SmartView" from Grimme focuses on monitoring the cleaning and sorting processes on potato harvesters that also involves the pickers and the operator who use and interact via the system. Offering zooming features, live slow motion and customised camera views on the Multi-Touch display screen, the system improves the monitoring of the crop flow and eliminates the need for adjusting cameras by hand. The "R-Connect Monitor” from ROPA focuses on intelligent and fully automated camera feeds from the sugar beet harvester to the so-called “R-Connect” Internet portal that offers a farm management and logistics management platform. The camera feeds of the standing beet crop before harvest and the feeds from the unloading elevator are made available on the Internet platform, helping managers to monitor the processing quality on the harvester, as well as machine data and job assignments, so managers can support operators remotely.

The two products represent a first step towards fully automated harvester set-ups. In addition, offering the opportunity to optimise the processes on the harvester, the systems will also save avoidable (travel) costs for service engineers and improve the logistics and consequently the quality of the crop as it is delivered to the factory.

837323


17. Agrarsysteme Hornung GmbH & Co. KG (Hall 04 stand A54)

Automatic All-Round Strapping Trolley

Careful securing of loads is crucial when transporting agricultural bales, but the manual securing of loads with belts involves a high degree of risk for the operator and takes a great deal of time that is in especially short supply during harvest.

The all-round strapping trolley from Agrarsysteme Hornung automates the proper securing of loads with straps with comparatively little effort, and requires less than 60 seconds to do so. The automatic lashing straps can be positioned as desired on the trailer. Swing arms at the front and rear wall lay the straps over the load. Then they are automatically tensioned. This securing method also functions with partial loading and imprecisely positioned bales.

Despite tight time schedules, this enables the driver to comply with the requirement to secure the load, while the danger during lashing and for other road users when driving on public roads is considerably reduced.

837324


18. HORTECH Srl, Italy, (Hall 21 stand F04)

VENTUM

Shortage of labour is a growing concern, especially among vegetable growers. Although the harvesting processes of produce like rocket or baby leaf salad are largely mechanised today, processing and packaging are still carried out manually, which is time consuming.

The VENTUM self-propelled harvester is the first machine to combine the stages of harvesting, processing and packaging into one automated process. After the crop is harvested, it travels on a system of various conveyor belts operating at different speeds to the processing unit. The technology also spreads and scatters the crops. Foreign objects and unwanted particles are separated by blowing the material over a 30 cm gap onto another belt. In a final step, the cleaned, weighed and boxed produce is automatically transferred to a transport vehicle.

The VENTUM self-propelled harvester automates all harvesting, processing and packaging stages, presenting a substantial improvement to efficiency and quality in vegetable harvesting, thereby increasing productivity and reducing costs.

837325


19. John Deere Walldorf GmbH & Co. KG (Hall 13 stand C40)

Intelligent vibration damping for large square balers

Large square balers enable high transport and storage density of plant material and therefore have achieved major importance in agriculture. However, due to high inertial and pressing forces, these big balers induce vibrations that subject the tractor cab to unpleasantly strong pitching movements, which put a strain on the tractor driver.

With intelligent vibration damping, these vibrations are almost completely eliminated on models of the 7R tractor series in conjunction with balers from John Deere. Based on the signals of the acceleration sensors in the GPS receiver and other signals within the tractor, the continuously adjustable drive is adjusted with the plunger frequency of the baler so that a periodic change of the speed setting compensates for the vibrations created. No additional hardware is required for this purpose.

This technology specifically developed for active vibration reduction means a considerable relief for the health and performance of tractor drivers.

837327


20. John Deere Walldorf GmbH & Co. KG (Hall 13 stand C40)

Proactive throughput controller

Throughput controllers on combine harvesters cannot react to changes in the harvested crop conditions until the material is already in the harvesting header, in the intake duct or in the threshing unit. With extreme changes in harvesting conditions, such as lying crops, partial gaps and weed areas, result in correspondingly high over- or under-loading, and combine driving speeds that change too drastically. The throughput controller is then often deactivated.

John Deere solves this problem with the proactive throughput controller. 3D stereo cameras detect the crop situation in front of the combine just like a proactive driver. Crop heights, lying crop with lying direction, gaps, driving lanes and harvested areas are detected and classified by so-called "machine learning". In addition, the system also uses the data of vegetation models, which consist of biomass maps generated via satellite or other technologies. Camera and biomass signals can also be used alone in each case. As soon as the combine harvester begins harvesting, the system calculates regression models from the real-time and the geo-referenced vegetation data. The harvesting conditions in front of the machine are therefore known, as are the strategies still specified by the driver. The combine harvester merges all sensor values and then adjusts its driving speed and its settings to the harvest situation.

The proactive combine harvester operates automatically for the first time, just like a combine harvester operated by a proactive, experienced driver. With this technology, John Deere has taken a major step in the further development of the automation of threshing crop harvesting.

837459


21. John Deere Walldorf GmbH & Co. KG (Halle 13 stand C40)

Efficiency Package for Large Combine Harvesters

Compared to walker combine harvesters, a further increase in performance on more powerful rotor combines is limited by the physical size of the machine. As a result, for further performance increases, the construction volume must be used more efficiently and the entire machine designed for a higher efficiency. This includes not only drive assemblies, but also all other assemblies – from the intake duct to the chopper.

When developing its new dual-axial rotor combine harvester, John Deere has not only revised the assemblies for threshing and separating, but also all other performance-determining assemblies while taking maximum efficiency into account. The goal of the design was to obtain maximum performance stability, with unaltered machine settings wherever possible, under difficult harvesting conditions. This begins with an identical pivot point of inclined conveyors and feed drums in order to always keep the feed angle identical relative to the rotors. This also includes a completely new, slim, belt-based drive concept that enables a transport width of 3.5 m to be adhered to with a current maximum duct width dimension of 1.72 m and 710 mm front tyres. The dual-axial rotor threshing and separating concept was designed for maximum straw throughput and performance stability values. Especially during cleaning, great importance was placed on the discharge of large air volume flows, including via the straw distribution technology in order to minimise the air counter-pressure and maximise air separation. The optimisation ends at the chopper by replacing the familiar angled blades with so-called "dented" blades with a golf ball air-flow effect for maximising the air volume flow.

The overall design contains all currently known technical measures for maximising the efficiency of a combine harvester. These then result in a reduced input with with maximised threshing output and therefore efficiency.

837460


22. Maschinenfabrik Bernard Krone GmbH & Co. KG (Halle 27 stand F24)

Automatic twine remover on stationary Premos pellet presses

This automatic twine remover boosts pelleting efficiency and improves work safety.

Grain, rape seed and maize straw are sought-after raw materials in farming and in the industrial sector. The straw can be marketed as pellets, chopped straw or straw powder. The harvested straw is baled into square bales of various sizes, which have to be broken up before processing them into pellets, for example. The issue here is that the twine needs to be removed first, a tedious manual job in a dusty environment.

The automatic twine remover on the stationary Premos pelleting press cuts the twine, removes it from the bale, coils and places it into a container in an automated sequence. In its first step, a triangular knife cuts the twine at the bottom of the bale while a rake on the top gathers and feeds it to a hydraulic spool. As this rotates, it winds the strings and then places the coil into a container. The auto sequence can be interrupted remotely by the operator.

The system presents a significant improvement in terms of work safety, operator comfort, ease of use and productivity.

837461


23. Maschinenfabrik Bernard Krone GmbH & Co. KG (Hall 27 stand F24)

EasyCut F 400 CV Fold

German traffic laws restrict transport widths of a tractor-mounted machines to 3 m. Due to this restriction, the maximum working width of front mowers cannot exceed 3.2 m depending on the cutting system. However, 3.2 m work widths are quite small for satisfying results and involve the risks of tyres running on the cut grass and of leaving stripes of uncut grass.

The new Krone EasyCut F 400 CV Fold disc mower conditioner offers a work width of 4 m, which cures the above problems by using the machine in combinations with a rear or a butterfly mower, especially when cutting bends and sloping fields. This combination offers larger overlaps that eliminate striping. On the other hand, the foldable cutterbar allows the machine to pivot to the rear for a sub 3 m transport width. Further advantages include the hydraulic folding mechanism that is operated from the cab and gives added road safety.

Another benefit of a large front mower width is the fact that it eliminates the need for fitting complex sensor-based control systems to avoid striping – a costly technology that actually does not contribute to the overall efficiency. Run-over stripes are eliminated and the quality of work is improved.

837462


24. LEMKEN GmbH & Co. KG (Hall 11 stand A42)

iQblue connect

By integrating Tractor Implement Management (TIM) into the ISOBUS standard it is possible to use sensor-based implement data to control the tractor or the implement. Although many existing ISOBUS-compatible implements and tractors are able to collect and supply the necessary data to the system, they lack the necessary hardware and software to support the control feature.

iQblue connect is a universal, retrofit and mobile module that automates implement functions via ISOBUS – presenting a simple and cost-effective way to implement TIM functions to the latest AEF (Agricultural Industry Electronics Foundation) standard. This means that the actuators on the implement can be controlled automatically from the tractor. iQblue connect has a GPS receiver and uses a cell phone network and interfaces with the agrirouter. In addition, the system has built-in mobile data connectivity to integrate the implements into digital documentation. The easy-use system connects to various implements via a uniform interface and without tools, configuring itself automatically to the new implement. The module can be extended by further installation kits that were developed for specific implements that allow users to also automate the functions of mechanical actuated machines. iQblue connect can also be retrofitted to existing implements where it makes use of the existing actuators.

iQblue connect allows users to automate a large variety of different agricultural machine applications. The manufacturer will demonstrate various use cases, such as ploughing, cultivating or tilling.
