Lwc bucket brush

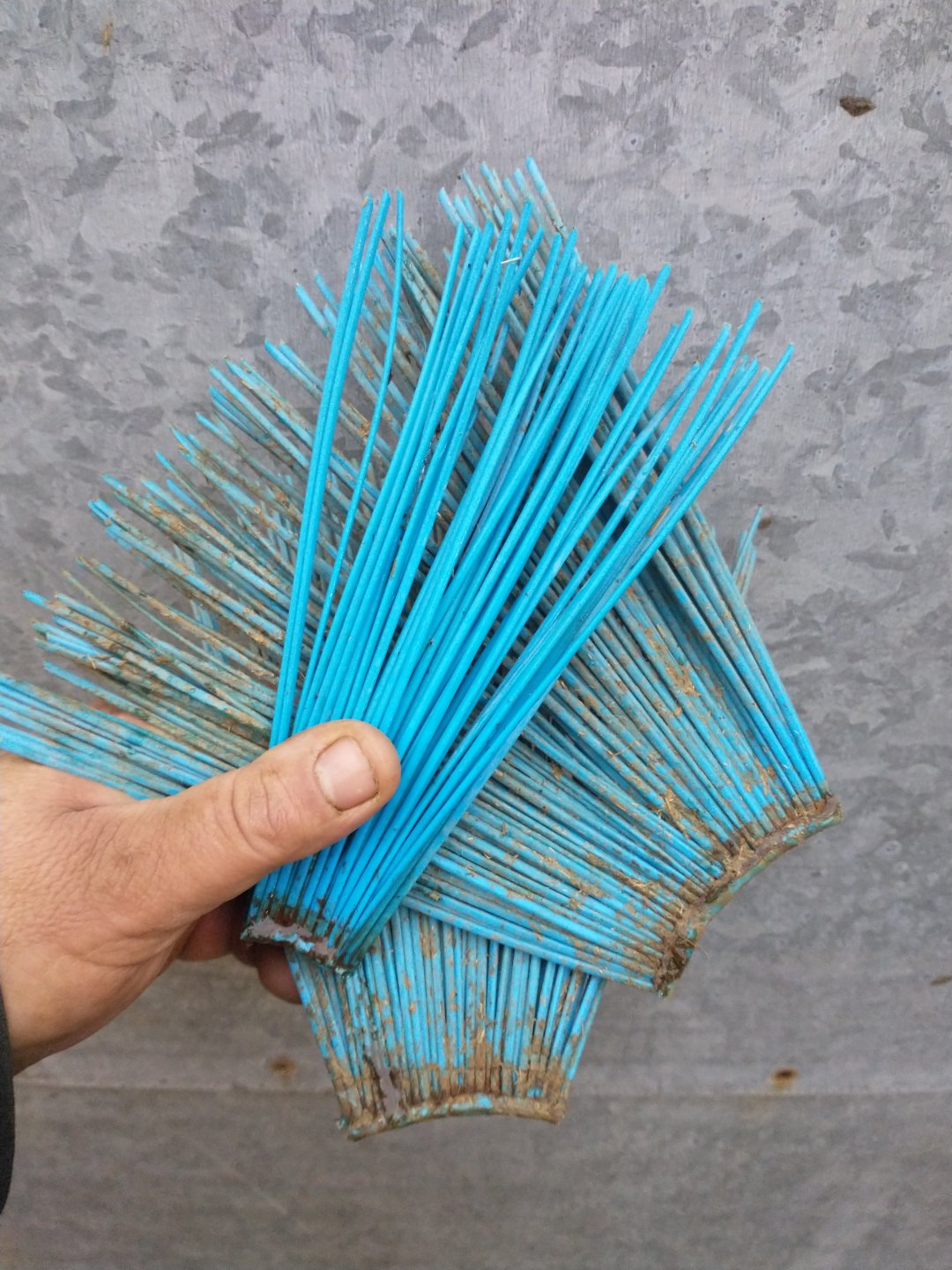

Anyone running an Lwc bucket brush, had mine just on 12 months, and the brush segments are falling to bits, leaving clumps of bristles on the floor everywhere, anyone else having this problem ?
I will give my dealer a ring next week, but just thought I'd ask here first.

Anyone had these apart ?
Need to take it to bits to fit new brush segments. I'm assuming the motor is on a keyway on the brush shaft, should I be able to undo the two bolts holding the motor to the brush body and slide the motor off ? The motor is on tight and not moving so I thought I'd ask before getting the BIG hammer out.



chickens and wheat

Member
Mixed Farmer
sorry late reply, ..take of the bearing not the motor end, brush rotor should fall down then, bearing if damaged is cheaper than attacking the motor end. we ended up tack welding bearing the shaft after it kept slipping on grub screw, easy to grind off again for dismantling
