Opico grain dryer ignition coil/starter

[Boydvalley]

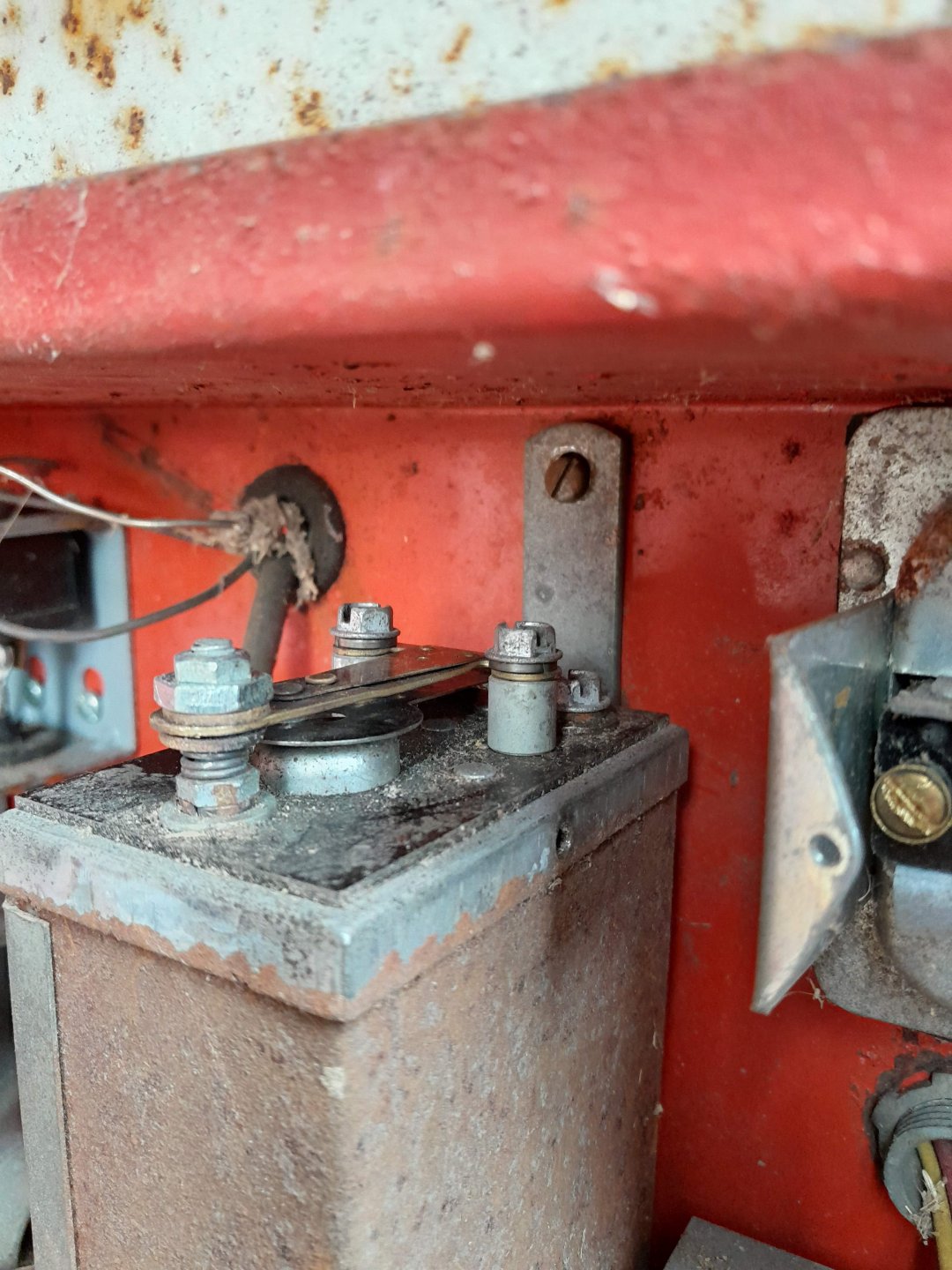

On top of my old dryer ignition coil is a set of points. Does anyone know how they work. Getting no spark. Box is clicking but these points don’t move.Have by passed everything else. Hadn’t used the dryer for 4 years and fired up first time when I was checking it. HT lead fell off when I loaded the dryer and was resting against casing. No spark since. ( It’s taken 5 weeks for Calor to deliver liquid take off bottles)



[Campbell]

That's the early type igniter coil, and the best! Clean the points with fine sand paper, power the wires with +12 vdc and earth, poke the points a bit with an insulated screwdriver, should start buzzing. If that works it should be OK at the spark plug.



[Boysground]

If @Campbell suggestion doesn’t work give these guys a call

Morgan Farm Machinery

For agricultural buildings, machinery, equipment and service, contact Morgan Farm Machinery in Northamptonshire on 01604 780087. Whether you’re looking to have a building constructed, refurbished or renovated, want to buy new or used agricultural machinery and equipment including Mecmar and Opico mo

www.morganfarmmachinery.com

Nothing they don’t know about Opico dryers

Bg



[Boydvalley]

That's the early type igniter coil, and the best! Clean the points with fine sand paper, power the wires with +12 vdc and earth, poke the points a bit with an insulated screwdriver, should start buzzing. If that works it should be OK at the spark plug.

Thanks. I’ve already cleaned the points. Should they be touching, that’s how they were when I took it apart to clean.



[Campbell]

Not touching, adjust a points gap with the small nuts. It's a bit of a black art, but usually works. Test for power across the contacts.
